Titanium & Aluminum Welding for Airframe Assemblies

Aluminum and titanium are generally not joined directly with conventional fusion welding because they can form brittle intermetallic compounds that weaken the joint. Where a dissimilar-material interface is required, engineers may consider specialised solid-state joining, transition inserts, mechanical fastening, or a redesigned joint configuration. Wintegral can assess the intended load path, materials, thicknesses, and assembly constraints before recommending a practical welding or joining route.

Aircraft-grade titanium commonly refers to titanium alloys selected for their high strength-to-weight ratio, corrosion resistance, fatigue performance, and capability at elevated temperatures. Ti-6Al-4V is one widely used aerospace alloy, but the appropriate grade depends on the component’s design, operating environment, heat treatment, and specification. Material certification, cleanliness, fit-up, shielding, and approved welding parameters are all important when joining titanium airframe parts.

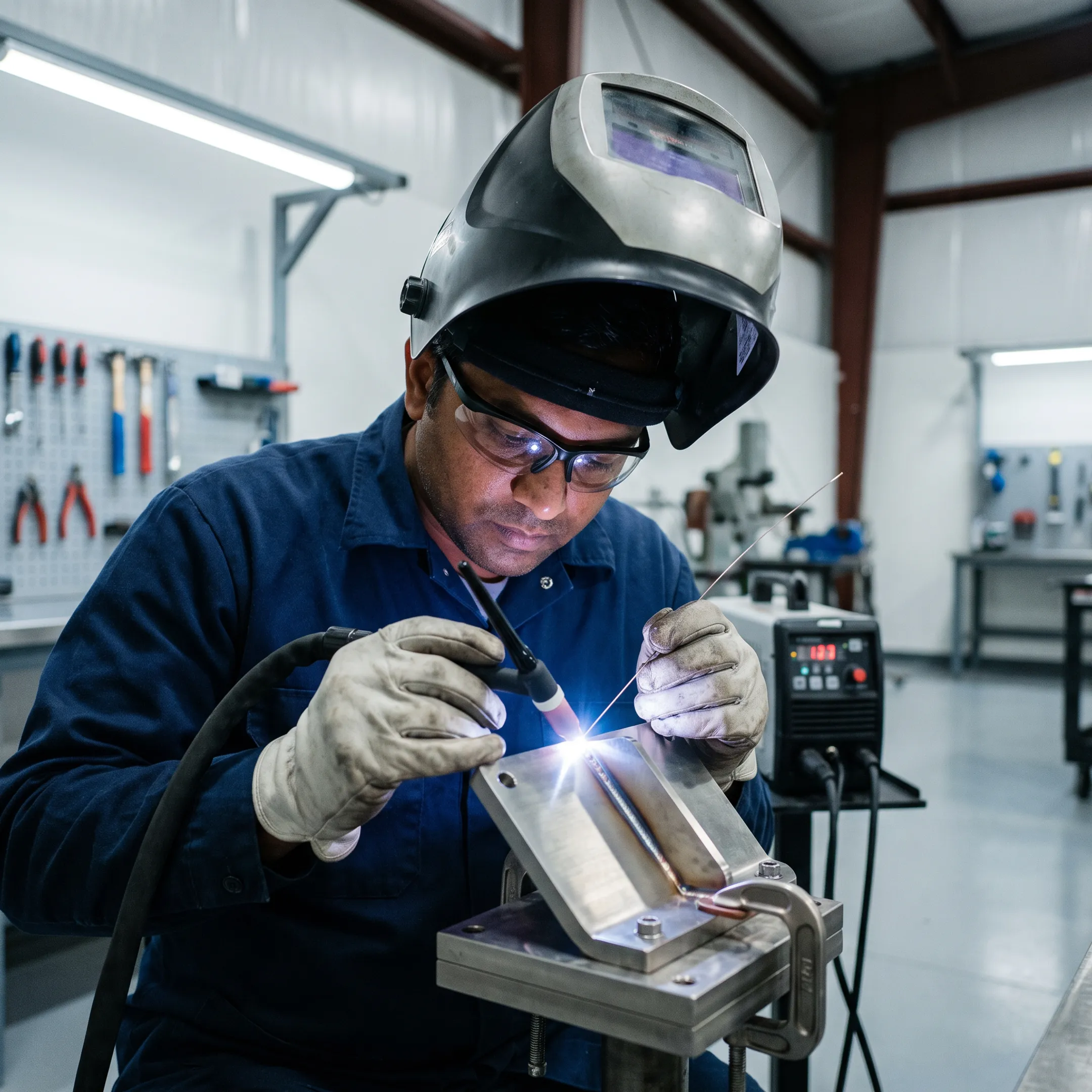

GTAW/TIG is often chosen for titanium airframe work because it provides excellent control over heat input, penetration, and bead placement. Micro-GTAW can suit smaller or thinner features, while laser welding may be appropriate for precise, low-distortion joints. The best process depends on alloy grade, thickness, joint design, access, fixture strategy, and required inspection criteria. A weld trial helps confirm the most suitable approach.

Titanium must be protected from oxygen, nitrogen, hydrogen, moisture, oil, and other contaminants while the weld area remains hot. Effective preparation includes thorough cleaning, correct joint fit-up, dedicated tooling where required, and appropriate inert-gas shielding. Torch shielding alone may not be enough; trailing shields or backside purge arrangements can be necessary. Discolouration can indicate inadequate shielding and should be assessed against the applicable project requirements.

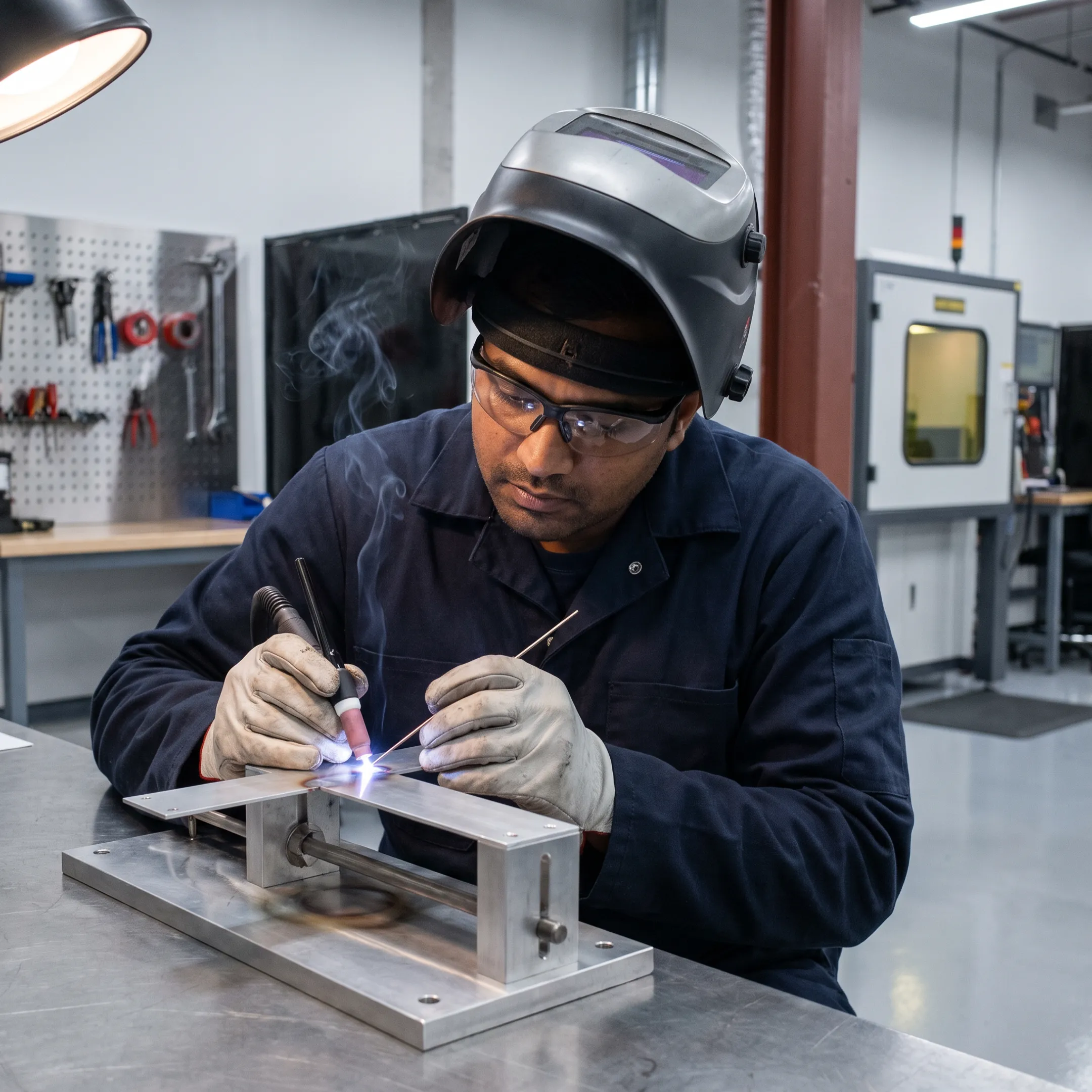

TIG welding can join aluminum airframe parts with controlled distortion, but thin sections and complex assemblies require careful planning. Heat input, tack sequence, joint design, clamping, filler selection, and weld sequence all influence final dimensions. Purpose-designed fixtures and balanced welding sequences help maintain alignment. For exceptionally thin or tolerance-sensitive features, micro-GTAW or laser welding may provide a smaller thermal footprint than conventional TIG welding.

Yes. Wintegral supports prototype development and small-batch welding for teams validating airframe components before larger-scale production. The engagement can include component review, weldability assessment, fixture input, welding trials, parameter refinement, and iterative adjustments where needed. This approach is useful when designs are still evolving or when material thickness, joint accessibility, and dimensional tolerance need confirmation through practical samples.

Pricing is provided after a technical review because airframe welding requirements vary by material, part geometry, joint complexity, tolerances, fixture needs, inspection expectations, and quantity. Prototype, low-volume, and repeat-production work may require different process planning and preparation. Supplying drawings, material details, photographs, quantities, and any customer specifications enables a more accurate quotation and realistic delivery plan for the required welding scope.

Yes. Components can be delivered or shipped to Wintegral Engineering for evaluation and welding. The team can coordinate technical communication around the part, approved scope, and expected delivery timeline, while completed components are returned after the agreed work is finished. For prototype programmes, multiple trial iterations may be arranged before final acceptance when design or process refinement is necessary.
