Micro Laser Welding for Defence Sensor Housings

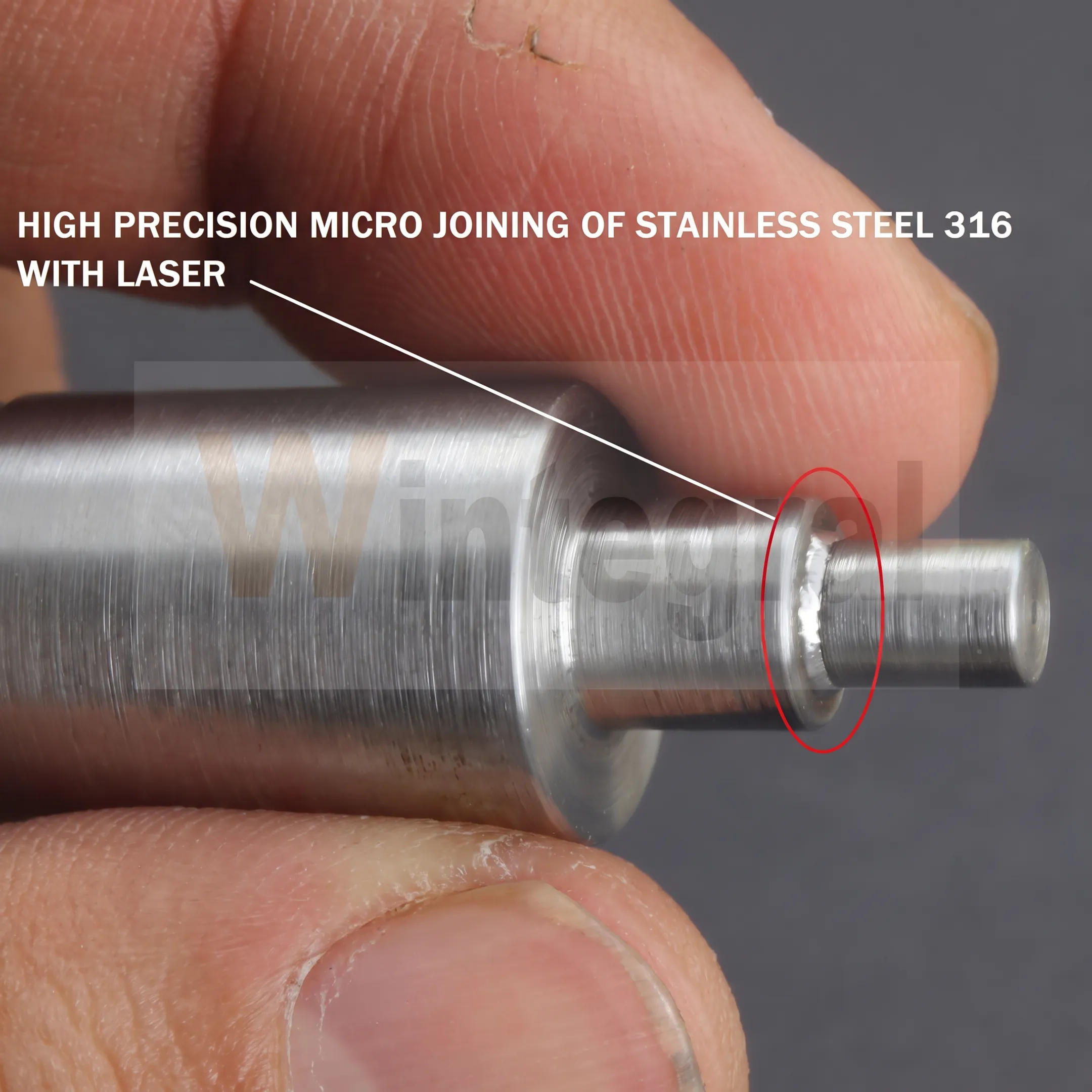

Laser micro welding is a precision joining process that uses a tightly focused laser beam to create very small welds with controlled heat input. It is suited to miniature components, thin sections, and assemblies with tight dimensional requirements. Compared with conventional welding, it can produce a narrow heat-affected zone and fine weld bead when the component design, material, and parameters are properly developed.

Defence sensor housings can include compact geometries, thin walls, seals, and heat-sensitive internal features. Micro laser welding offers localised energy input and accurate weld placement, helping reduce the risk of unnecessary distortion around the joint. Suitability must still be confirmed through a technical review of material, housing design, access, joint type, sealing needs, and the programme’s specified qualification requirements.

Micro laser welding can be evaluated for many precision engineering materials, including stainless steel, titanium, aluminium, and compatible metal combinations. Actual weldability depends on alloy grade, thickness, surface condition, joint configuration, and functional requirements. A review and weld trial help establish whether the materials can achieve the required joint quality without adversely affecting critical housing dimensions or nearby features.

Yes. Wintegral supports prototype welding and small-batch work for teams developing new components. The engagement can include feasibility assessment, weld trials, parameter optimisation, and fixture planning before an approved approach is used for further builds. This allows engineers to assess weld accessibility, distortion control, and joint performance during development, rather than relying solely on assumptions from a drawing.

Heat distortion is managed by using a focused micro-laser process, selecting controlled parameters, and designing fixtures that locate and support the component consistently. Joint geometry, material thickness, weld sequence, and access are also reviewed because each affects heat flow. Weld trials are important for confirming a practical approach, especially where sensor housings have thin walls, tight clearances, or sensitive adjacent features.

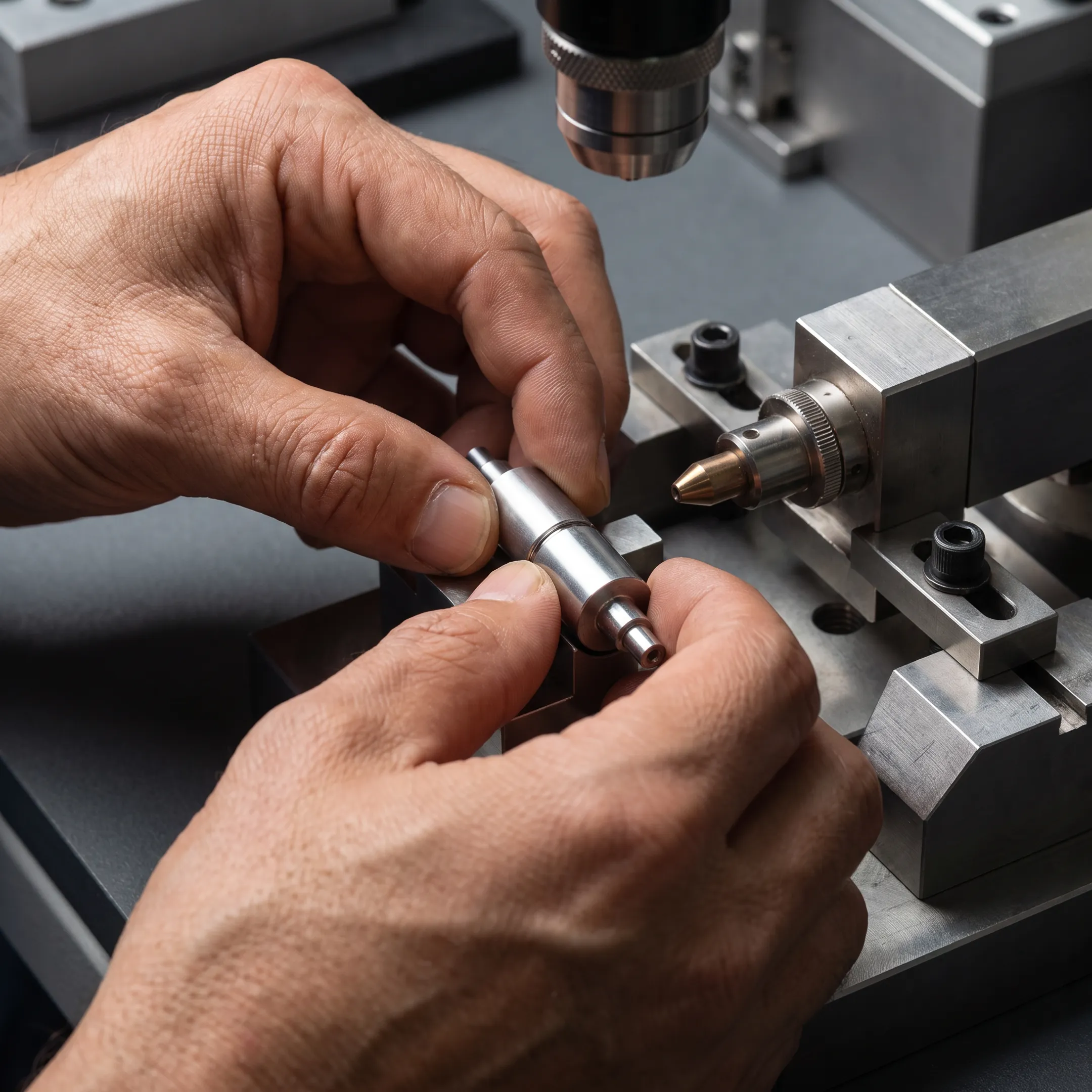

Yes. Fixture design is part of the technical support available for precision welding applications. A suitable fixture helps locate small components accurately, maintain joint alignment, and provide stable laser access without damaging delicate features. Fixture needs are assessed alongside part geometry, batch volume, tolerances, and handling requirements, then refined during weld trials where necessary to improve repeatability.

Pricing is provided after technical evaluation because micro laser welding work varies by material, housing geometry, joint complexity, weld precision, fixture needs, and production quantity. Prototype, low-volume, and repeat-production requirements may involve different levels of process development. Reviewing the component and requirements first enables Wintegral to recommend an appropriate process and issue a quotation based on the actual scope of work.

Yes. Components can be delivered or shipped to Wintegral Engineering’s Bengaluru or Pune facilities for technical review and welding. The service model supports outstation customers through coordinated logistics and communication. Finished parts are returned after completion and inspection, while prototype projects may require multiple iterations before final acceptance. Delivery timing is discussed after the component and welding scope are evaluated.
