Inconel & Superalloy Welding for Jet Engine Components

The four core sections commonly identified in a gas-turbine jet engine are the inlet, compressor, combustor, and turbine. Air enters through the inlet, is compressed, mixed with fuel and burned in the combustor, then expands through the turbine. Many engines also include an exhaust nozzle and, in turbofan designs, a fan section. Component configurations vary by engine type and application.

Inconel and other nickel-based superalloys are selected for many jet engine applications because they retain strength and resist oxidation, corrosion, and creep at elevated temperatures. These characteristics make them suitable for demanding areas such as turbine-adjacent hardware, combustion-related assemblies, ducts, and high-temperature structural parts. The exact alloy choice depends on temperature exposure, loading, environment, and the component’s required manufacturing route.

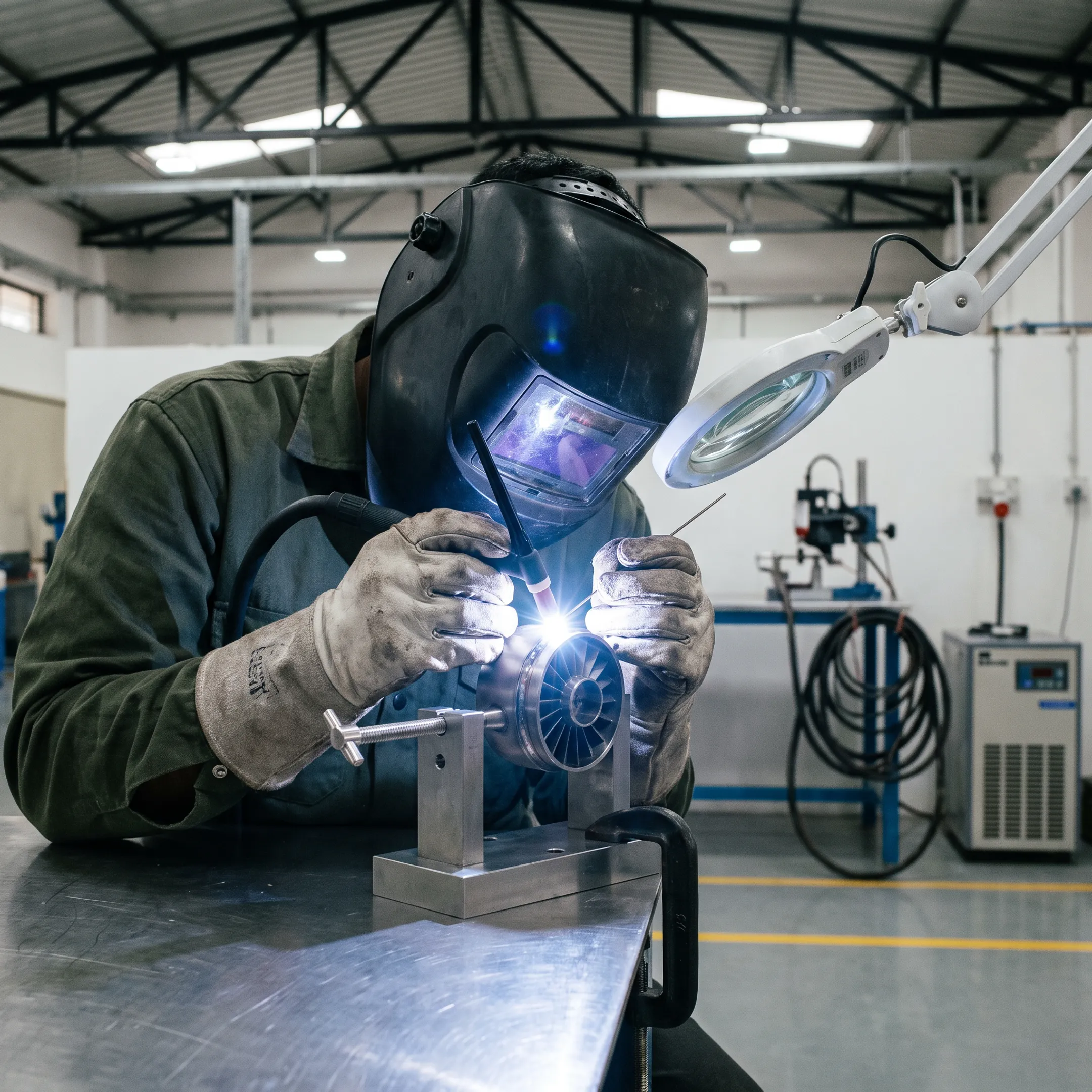

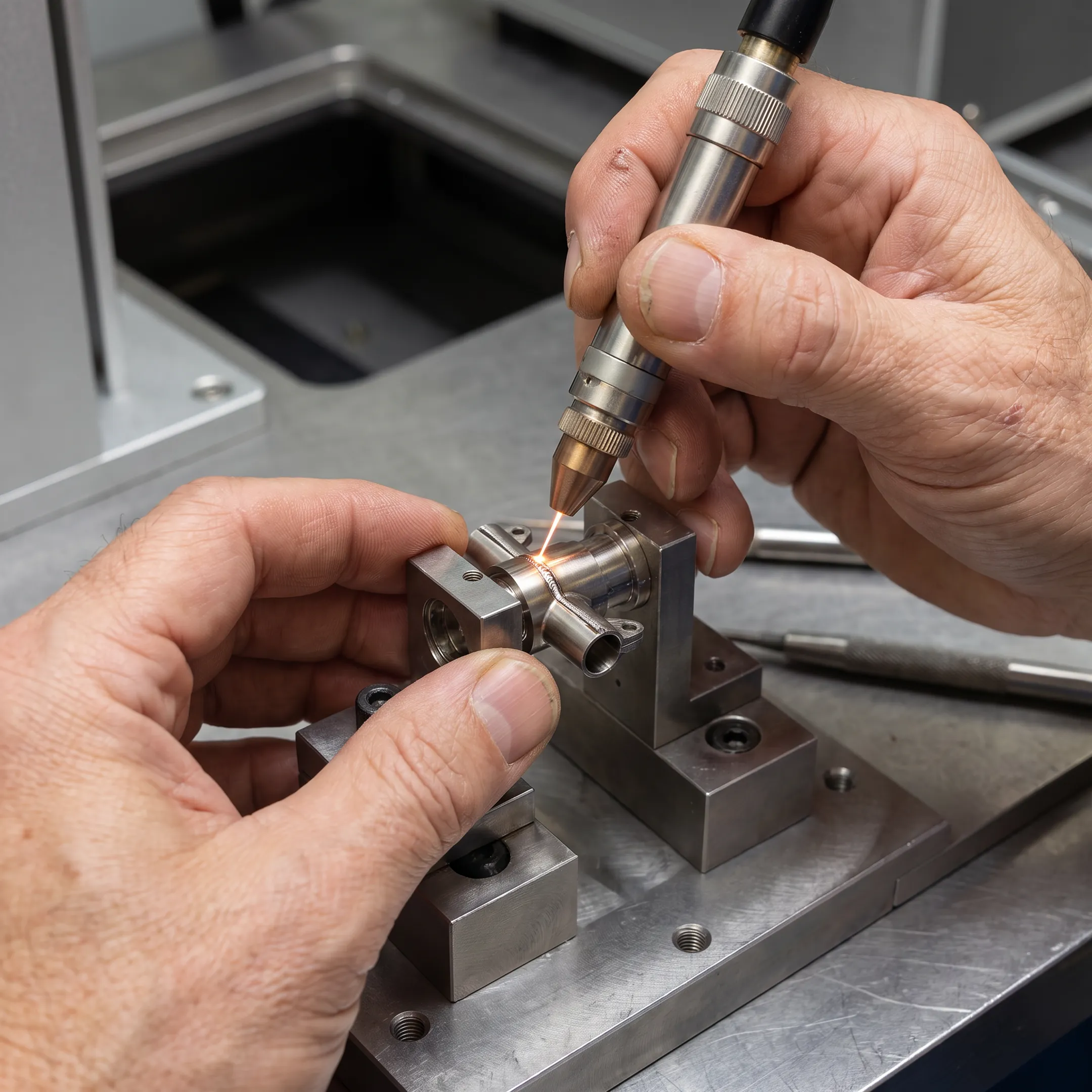

The appropriate process depends on alloy grade, part thickness, joint design, access, tolerance requirements, and the allowable heat-affected zone. GTAW can offer precise arc control for critical joints, while laser and micro-welding methods can support localized heat input on smaller or intricate features. A weld trial is valuable for confirming parameters, fixture needs, visual quality, distortion behavior, and repeatability before production work begins.

Distortion control begins with reviewing the component geometry, restraint strategy, joint preparation, and heat-input requirements. Suitable process selection, carefully developed parameters, consistent fit-up, and purpose-designed fixtures can help limit movement during welding. For thin or complex features, localized laser or micro-welding may be considered. Post-weld inspection and any required machining allowances should also be planned before production to protect critical dimensions.

Yes. Wintegral Engineering supports prototype development and small-batch welding through application review, weld trials, parameter refinement, fixture input, and production execution. This approach helps engineering teams evaluate a design before scaling and can accommodate iterative development where necessary. Quotations are prepared after reviewing the material, joint configuration, component complexity, quantity, and required process. Components can be coordinated through Bengaluru or Pune facilities.

Provide part drawings, material specification, joint details, component dimensions, photographs where available, quantity, and the intended operating or inspection requirements. It is also helpful to identify tolerance-critical areas, existing damage or previous welds, any required documentation, and target delivery timing. This information allows the team to assess feasibility, select a suitable process, identify fixture needs, and prepare an application-specific quotation.

Wintegral Engineering performs inspection before completed work is returned, with the inspection scope aligned to the job’s requirements and agreed process. For development work, multiple iterations may be used before final acceptance. Customers can discuss documentation, visual checks, dimensional considerations, and any application-specific acceptance criteria during the initial technical evaluation so expectations are defined before welding begins.

Yes. Wintegral Engineering supports customers across India through a shipment-based service model, with facilities in Bengaluru and Pune. Customers retain ownership of their components throughout the engagement. After technical evaluation and agreed welding work, completed parts are returned following inspection. Coordinating packaging, component identification, handling needs, and delivery expectations in advance helps protect sensitive precision parts and supports efficient turnaround.
